Tips·

Week 14, 2021 - Tips I learned this week

Azure tenant in vs code and Azure IoT Hub vs code extension.

This week I learned a few things related to vscode and especially about the Azure IoT Hub vscode extension.

Accessing Azure resources in vscode from a specific tenant.

There are a lot of vscode extensions (like the ones in this extension pack) that allow you to access and manipulate your Azure resources from Visual Studio Code.

This specific extension Azure Account makes it easy for you to sign in to your Azure account and select the subscription you want to use. But what if you are working in a consulting company that works for different companies? How do you indicate the tenant of the customer to sign in to? Well, the answer is quite simple, the extension exposes a setting in vscode to specify a specific tenant to use.

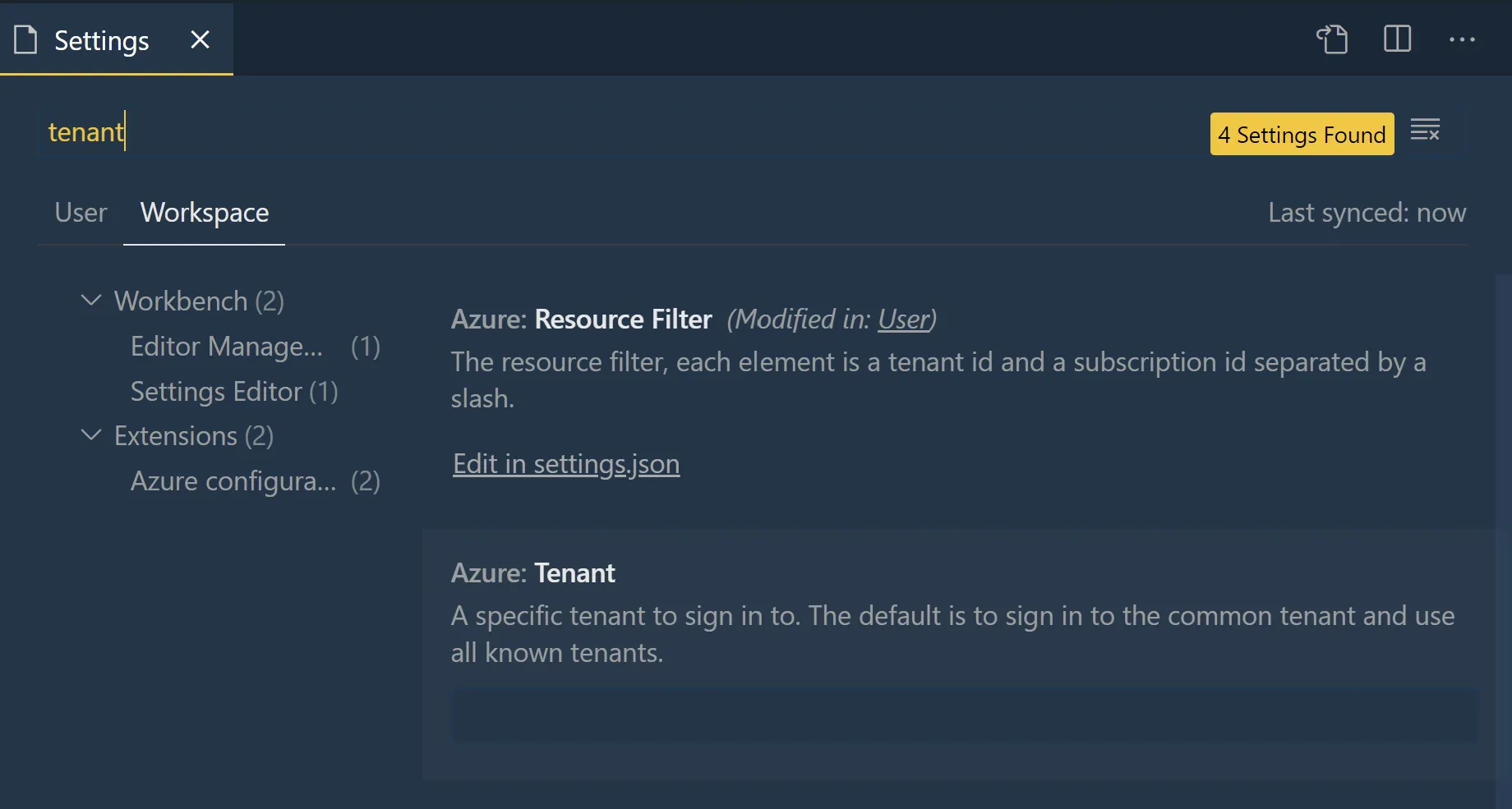

Azure tenant settings in vscode.

If you like to update the settings in JSON mode the key to use is azure.tenant

Azure IoT Hub vs code extension is awesome.

I think everything is in the title. I knew about this extension before this week but I did not take the time to really use it. However this week it helped me a lot for my sprint demo where I needed to show new functionalities I implemented on an IoT backend: modify device twin tags in the IoT Hub and send some messages to an IoT device under certain conditions.

The Azure IoT Hub extension adds an Azure IoT Hub view in the Explorer where you can see the devices of the IoT Hub you selected and can do some actions on them.

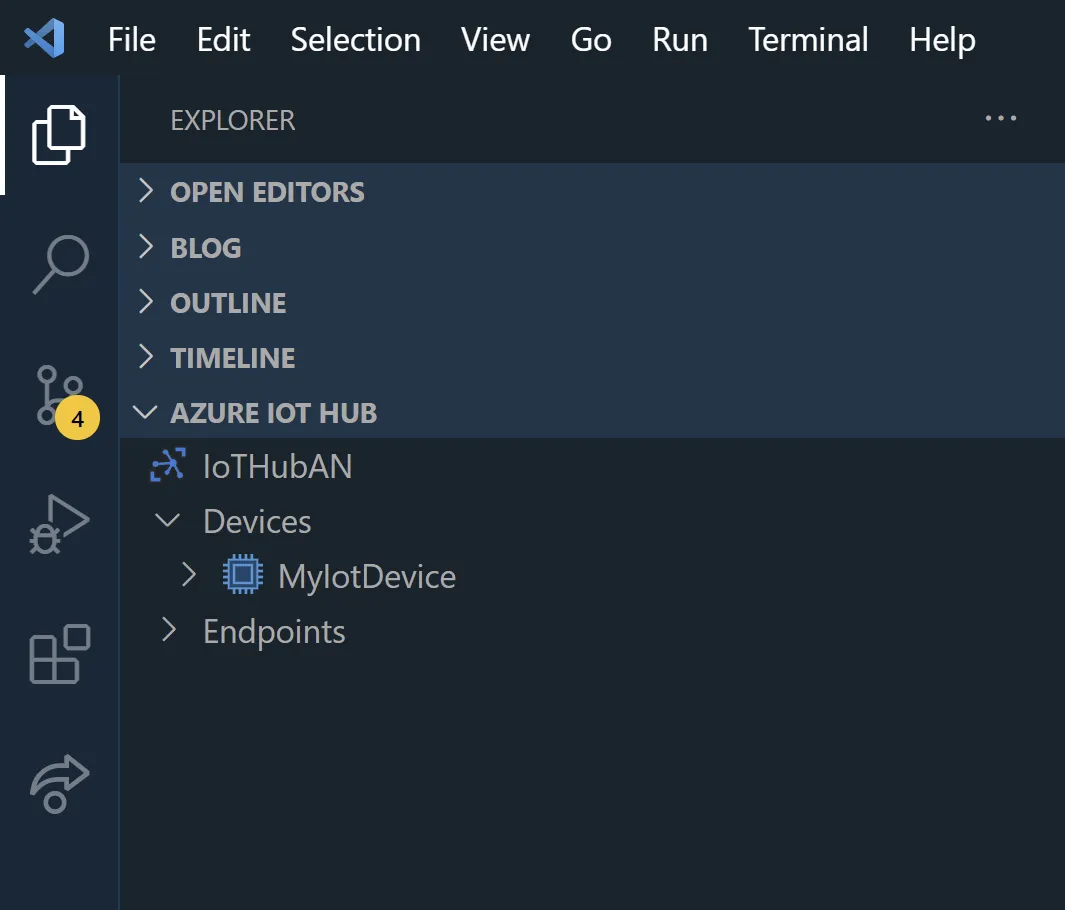

Azure IoT Hub view in vscode.

There are also a lot of commands you can use to interact with an IoT Hub and its devices.

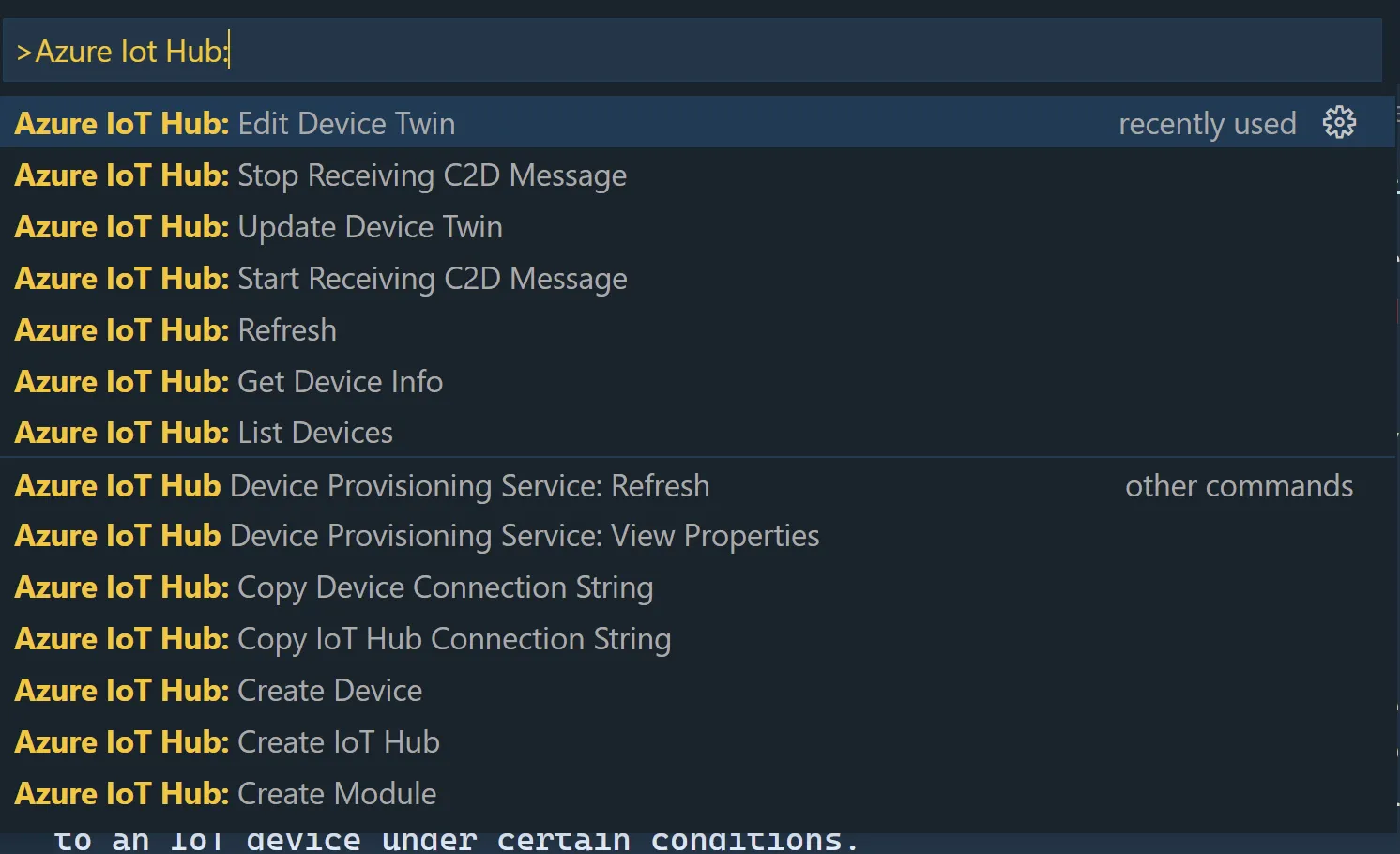

Azure IoT Hub commands in vscode command palette.

You can do pretty much anything you want from sending C2D / D2C messages to monitoring C2D / D2C messages. I found it quite nice to be able to directly visualize and edit a device twin as a JSON document in vs code.

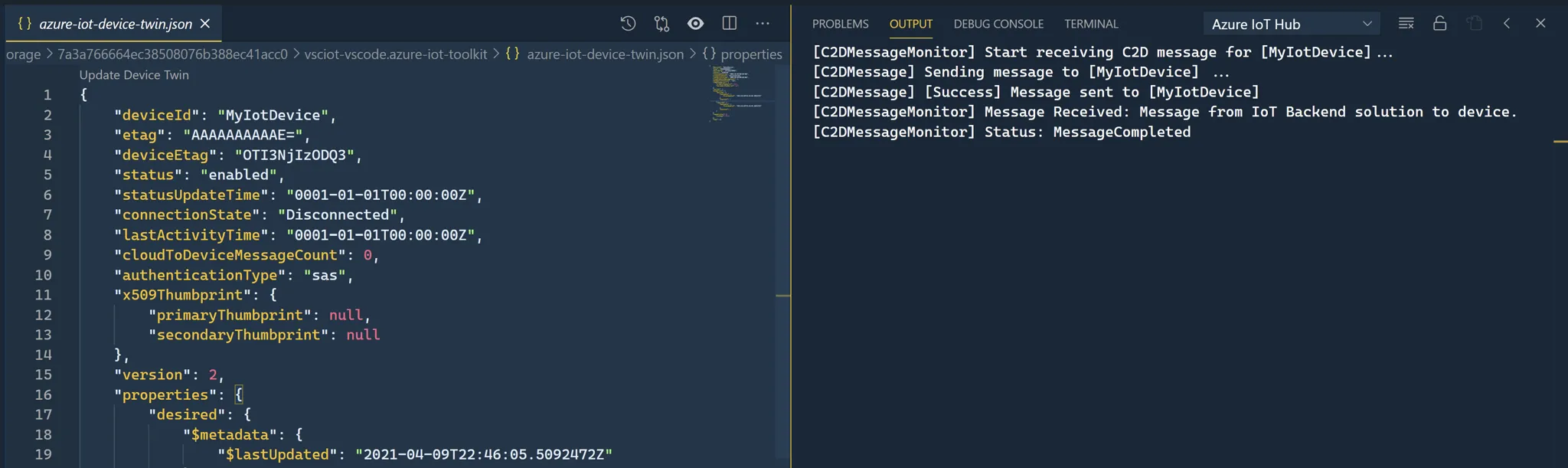

Device twin json in vscode.

To quickly test something related to IoT Hub, the Azure IoT Hub extension is a very useful tool. An interesting alternative to this tool is the Azure IoT Explorer which is more user-friendly thanks to its simple UI but does not have all the features.

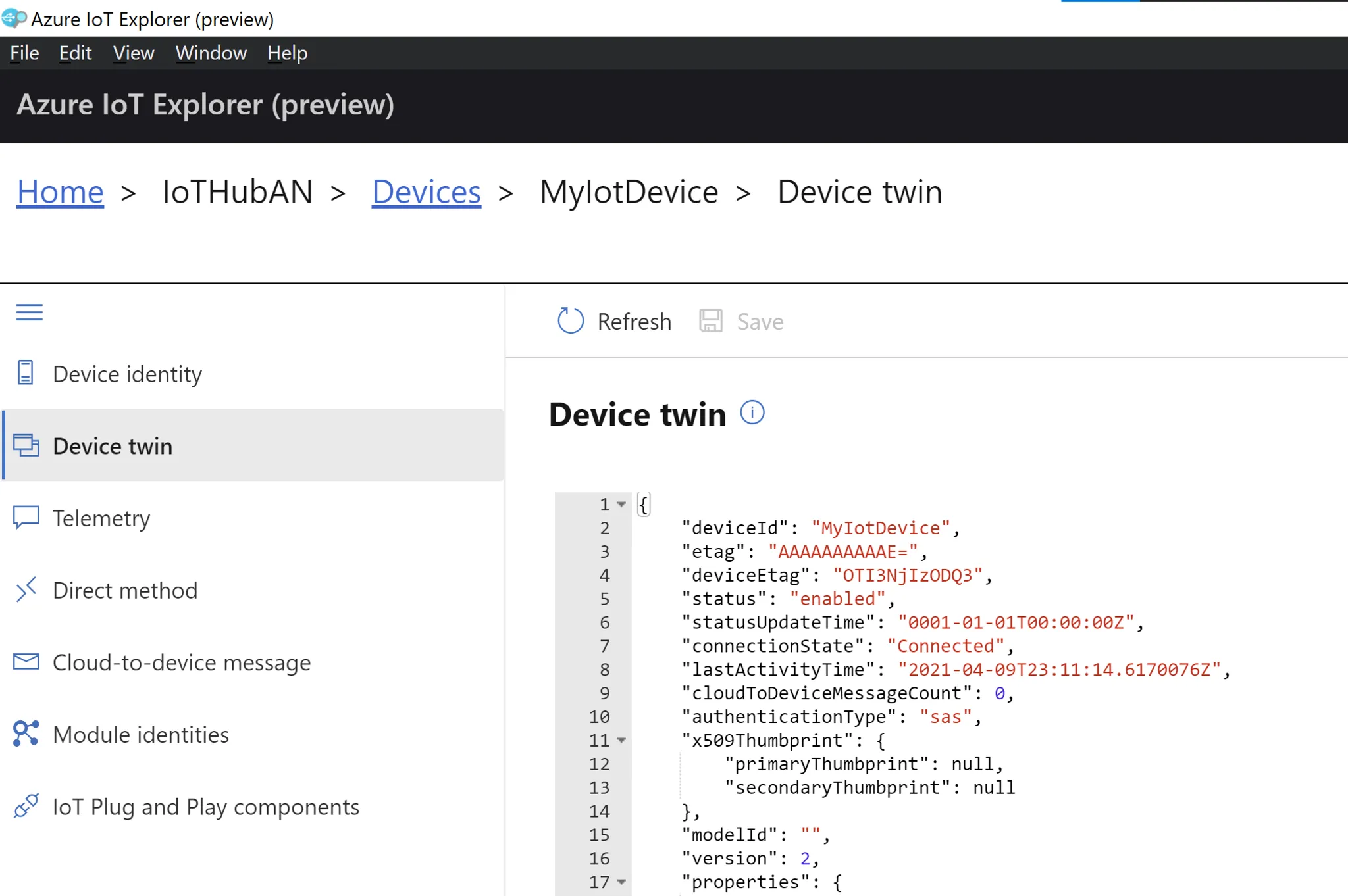

Device twin json in Azure Iot Explorer.

And that's it for this week, happy learning!
